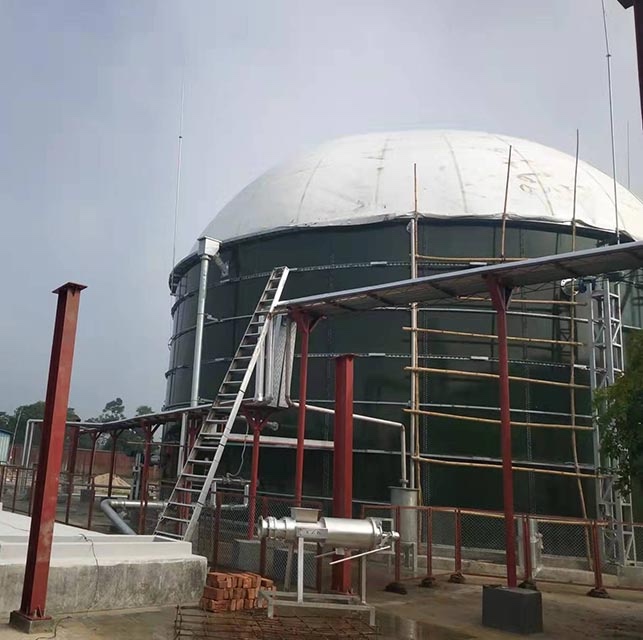

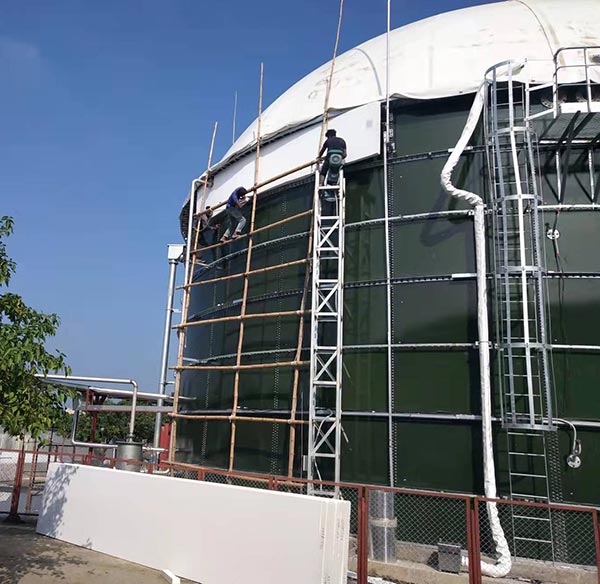

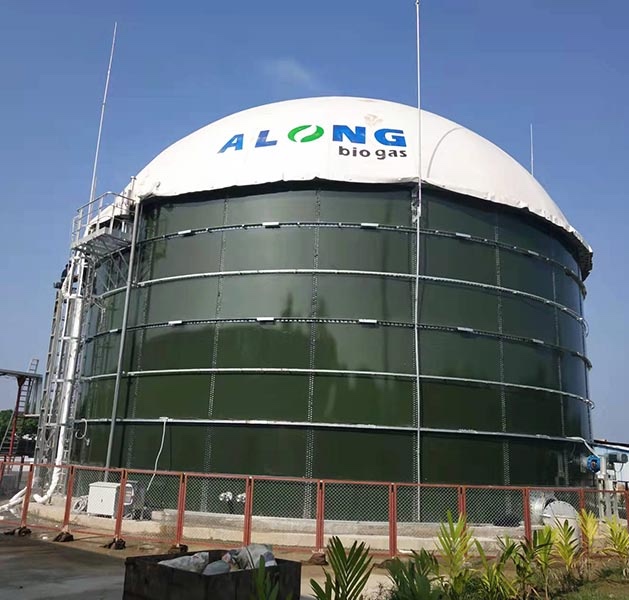

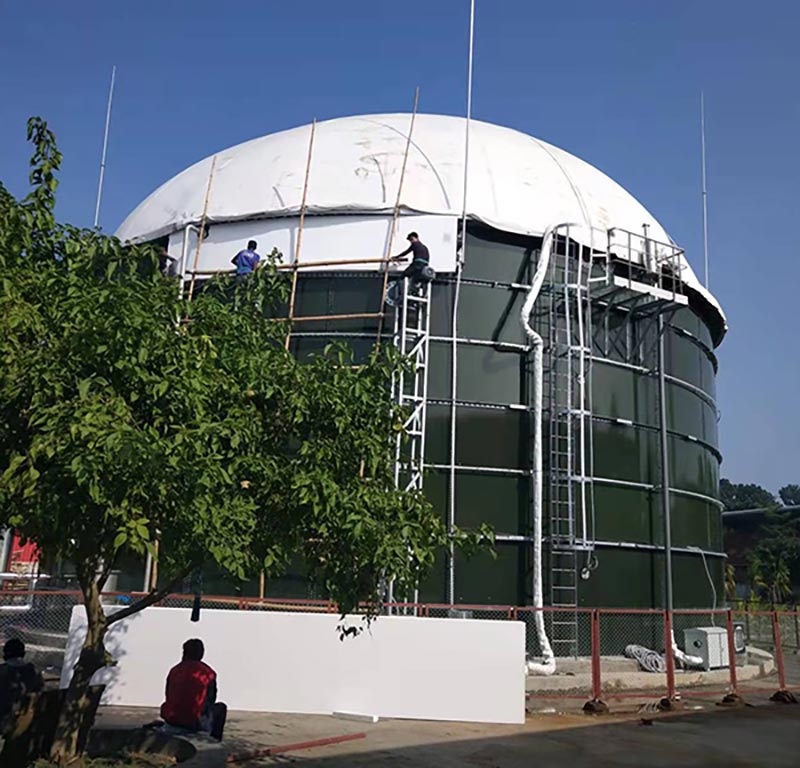

CSTR Enamel steel digester
CSTR MEANS Continuous Stirring Tank Reactor. Enamel Steel Tank, also known as enamel assembly tank, is made of titanium-alloy steel plates with double-sided enamel plating. They have beautiful appearance, easy cleaning and maintenance, with good performance in wear resistance, corrosion resistance, impact resistance, insulation resistance and static proof; No special anti-corrosion treatment required, life-time is designed at 30 years.
The location of birthplace of hot-rolled steel with double-sided enamel. While it’s the largest and most professional supplier for enamel assembly tank in China, with nearly 30 years of experiences in manufacturing enamel steel. Products are enjoying high reputations internationally, being exported to the United States,Russia,Asia and Africa etc.
Characteristics |
Specification |
Tank volume: |
100~13000 cubic meters |
Structural feature: |
All-in-one solution(Biogas digestion&Storage) ,Double-membrane gas holder mounted on top of tank; |
Steel Material |
Titanium-alloy Steel |
Coating Color |
Dark Green or custom-made |
Coating Thickness |
0.20~0.40mm,Double coated |
Steel Panel Thickness |
3 ~ 12mm |
Acid&Alkalinity Proof |
Standard pH:3~11,Special pH:1~14 |
Adhesion |
3,450 N/cm |
Elastic |
Same as steel panel,around 500 kN/mm |
Hardness |
6.0 Mohs |
Life Time |
≥ 30 years |
Holiday/Spark Test |
> 1500V |
Permeability |
Gas&liquid impermeable |
Easy for Cleaning |
Smooth,Glossy,Inert,Anti-adhesion |
Corrosion resistance |
Excellent,suitable for waste-water,salt water,sea water,high sulfur crude oil,salt box,organic and inorganic compounds |
