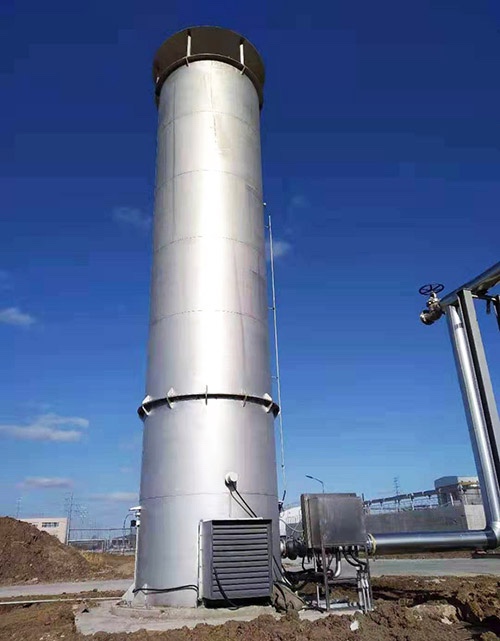

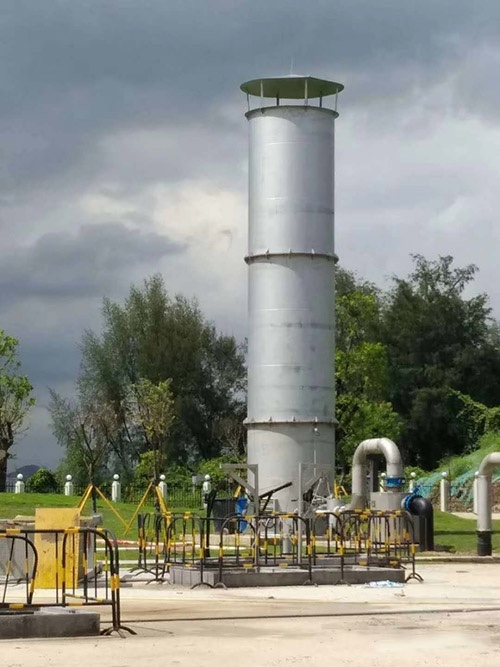

Description
Utilization gas: Biogas, Landfill gas, LPG and so on
Capacity 20~5000 m³/hr available, load adjustment ratio up to 1:10;Main material is stainless steel 304, while the burner adopts stainless steel 310S (06Cr25Ni20) material;flare shell is stainless steel, the middle layer is insulation material, while the liner is special refractory of high temp resistance; The temperature of flare appearance does not exceed 60 degrees Celsius when in full-loading condition;The combustion of biogas occurs in the enclosure and no flame at top of flare;flare can be operated manually or automatically or both combined with function of remote controlling available;Burner and flame arrester can prevent the occurrence of tempering;The solenoid valve would be open or closed automatically when the pressure signal from pressure switch is received by system;Biogas supply would be cut off automatically when flame signal can not be detected by the flame detecting system;Automatic electronic ignition.Constant lighting settled,which is always on working to ensure the success rate of ignition and would be closed only when the pressure is too low.Combustion efficiency 99%, Noise level 60 dB.
Parameter Table for Election
Model
Capacity
(m3/h)
Max.
(m3/h)
Height
(mm)
Dia.meter
(mm)
Connection size
Main material
AF100
100
150
3870
300
DN60
Stainless steel
AF200
200
250
4270
500
DN80
Stainless steel
AF300
300
400
5020
720
DN100
Stainless steel
AF500
500
600
6310
950
DN125
Stainless steel
AF600
600
750
6520
1100
DN150
Stainless steel
AF800
800
950
7200
1260
DN150
Stainless steel
AF1000
1000
1150
7750
1300
DN200
Stainless steel
AF1200
1200
1400
9250
1500
DN200
Stainless steel
AF1500
1500
1800
9500
1800
DN250
Stainless steel
AF2000
2000
2200
11500
2000
DN300
Stainless steel
AF2500
2500
2600
12500
2200
DN350
Stainless steel
AF3000
3000
3200
12800
2400
DN350
Stainless steel
AF4000
4000
4200
13200
2500
DN350
Stainless steel
AF5000
5000
5200
13200
2500
DN350
Stainless steel
